Clean-in-Place system Manufacturer / Sterilization-In-Place System Manufacturer
Cleaning-In-Place (CIP) and Sterilization-In-Place (SIP) are systems designed for automatic cleaning and disinfecting without major disassembly and assembly work. We design, develop, manufacture, supply and install Mobile and Fixed CIP & SIP Modules Units for sanitization and sterilization. The units are custom made, modular, skidded in automated or semi-automated Models as per the required time cycle for cleaning and sterilization as a part of cGMP requirements from portable to large fixed Multi-Tank system.
Benefits
- 1CIP system with validated results
- 2CIP systems are engineered as per specific application, facility layout & utility
- 3Effective & efficient process equipment cleaning
- 4In-house programming expertise to design CIP cycle as per 21 CFR Part 11
We offer the following customizations according to client specific needs,
- Mobile or Stationery skids
- Water Storage tanks
- Heat exchanger
- Dosing pumps
- Forward pump
- Reverse Circulation pump
- Conductivity sensor
- Flow sensor
CIP stands for Clean-In-Place and is an automated process that uses a combination of chemicals, heat and water to sanitise equipment. One CIP cycle will usually take between 60 and 90 minutes.SIP or Steam-in-Place adds additional sterilisation to the CIP process by using steam at temperatures of 120-135°C for 30 minutes to eliminate any microorganisms.

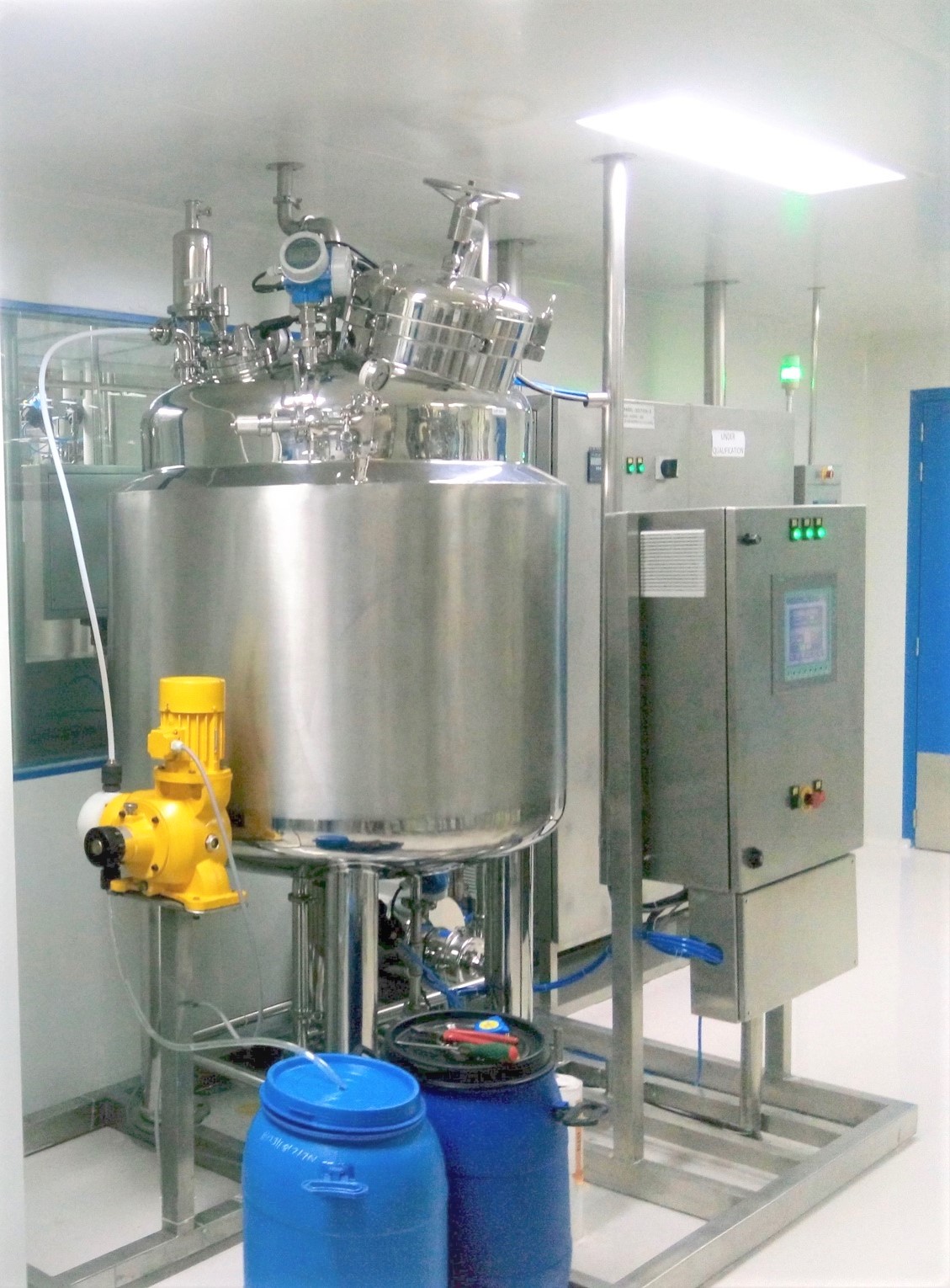

The operations of various pumps is carried out through the main control panel. The panel is made out of SS304 grade material and consists of various safety lock systems like the Emergency stop and Mains supply indicators for safe work and extended component life. The vessels are connected to each other via interconnecting pipelines manufactured as per cGMP norms and connected with sealed tri clamp connection.
- All contact parts made of SS316L and non-contact parts made of SS304 grade material
- Food grade silicone gaskets
- Vessel design as per ASME guidelines
- Torispherical, Hemispherical and Conical dish top customization availability
- GMP documentation like DQ, FAT, OQ & IQ
